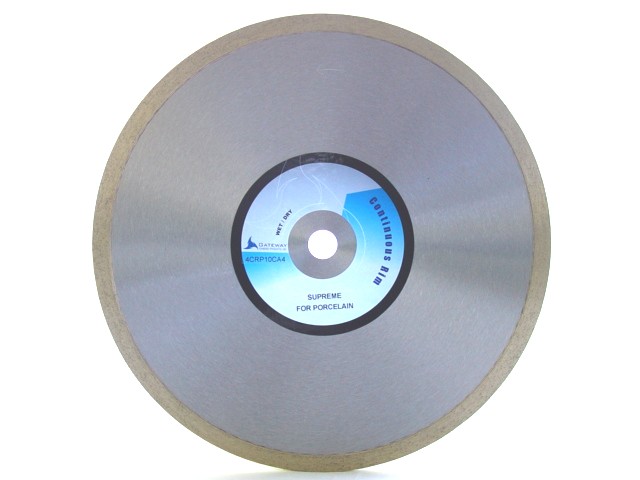

Continuous Rim Blades for Pocelain



4CRP Supreme Series - Wet Type

GDP’s supreme quality, wet cutting porcelain continuous rim type blades are designed to provide smooth, chip free, long life, and fast cutting on porcelain floor tiles, ceramic tiles, granites and other stone materials. The supreme 4CRP series delivers maximum performance at the lowest cost per cut.



Item Number

Diameter

Width

Rim Height

Arbor

4CRP04CA1 4" .060 8mm 20mm" - 5/8"
4CRP04CA2 4" .060 8mm 7/8" - 5/8"
4CRP45CA2 4.5" .060 8mm 7/8" - 5/8"
4CRP05CA2 5" .060 8mm 7/8" - 5/8"
4CRP06CA4 6" .060 10mm 5/8"
4CRP07CA3 7" .060 10mm DM - 7/8" - 5/8"
4CRP08CA4 8" .060 10mm 5/8"
4CRP10CA4 10" .060 10mm 5/8"
4CRP12EA6 12" .080 10mm 1" - 20mm
4CRP12EA8 12" .080 10mm 60mm - 50mm
4CRP14FA6 14" .090 10mm 1" - 20mm
4CRP14FA8 14" .090 10mm 60mm - 50mm
