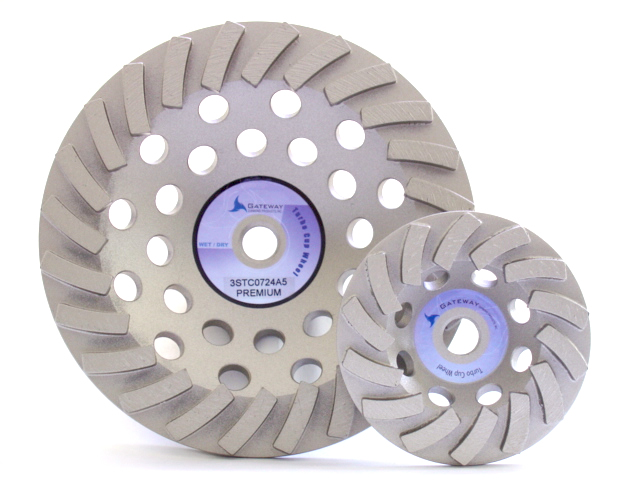

Spiral Turbo Cup Wheels



3STC Premium Series - Wet or Dry

The spiral turbo cup wheels have segments angled at approximately 45º in toward center of wheel. This allows the wheel to ride flatter on the concrete surface, eliminating gouging problems associated with the conventional single and double row wheels. Cup wheels with more segments are for heavy removal. Premium grades provide longer life, faster grinding speed, and greater range of application.



Item Number

Diameter

Thickness

Segments

Arbor

3STC0408A2

4"

6mm

8 S

7/8" - 5/8"

3STC0408A5

4"

6mm

8 S

5/8" - 11 thread

3STC0414A2

4"

6mm

14 S

7/8" - 5/8"

3STC0414A5

4"

6mm

14 S

5/8" - 11 thread

3STC4509A2

4.5"

6mm

9 S

7/8" - 5/8"

3STC4509A5

4.5"

6mm

9 S

5/8" - 11 thread

3STC4518A2

4.5"

6mm

18 S

7/8" - 5/8"

3STC4518A5

4.5"

6mm

18 S

5/8" - 11 thread

3STC0712A2

7"

6mm

12 S

7/8" - 5/8"

3STC0712A5

7"

6mm

12 S

5/8" - 11 thread

3STC0724A2

7"

6mm

24 S

7/8" - 5/8"

3STC0724A5

7"

6mm

24 S

5/8" - 11 thread
