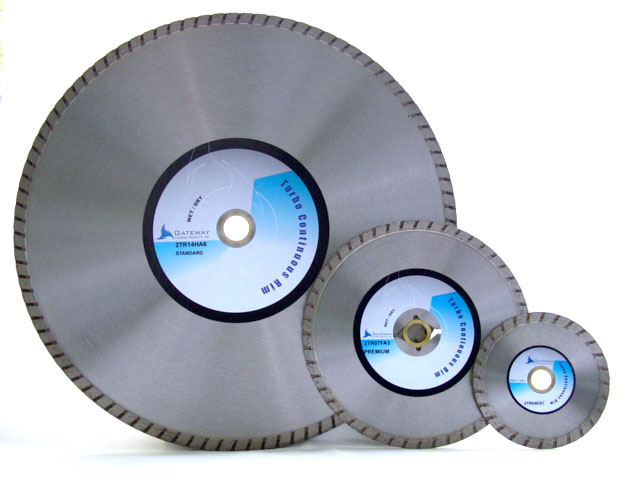

Turbo Continuous Rim Blades



3TR Premium Series - Wet or Dry
Multi-application blade provides the fastest and smoothest cut, coupled with extra long life for maximum production at the lowest cost per cut. The premium 3TR series is designed for extra hard materials such as granite, marble, reinforced concrete, brick, tile, ceramic and other hard stone.



 Item Number   Diameter   Width   Rim Height   Arbor
3TR04EA1 4" .080 8mm / 10mm 20mm - 5/8"
3TR04EA2 4" .080 8mm / 10mm 7/8" - 5/8"
3TR45EA2 4.5" .080 8mm / 10mm 7/8" - 5/8"
3TR05EA2 5" .080 8mm / 10mm 7/8" - 5/8"
3TR07FA3 7" .095 8mm / 10mm DM - 7/8" - 5/8"
3TR08FA3 8" .095 8mm / 10mm DM - 7/8" - 5/8"
3TR10FA3 10" .095 8mm / 10mm DM - 7/8" - 5/8"
3TR12HA6 12" .118 8mm / 10mm 1" - 20mm
3TR14HA6 14" .118 8mm / 10mm 1" - 20mm



2TR Standard Series - Wet or Dry
General purpose blade for fast and smooth cutting with excellent life at an economical price. The 2TR series is designed to cut a wide variety of materials including concrete, marble, brick, tile and other masonry materials.



 Item Number   Diameter   Width   Rim Height   Arbor
2TR04EA1 4" .080 8mm / 10mm 20mm - 5/8"
2TR04EA2 4" .080 8mm / 10mm 7/8" - 5/8"
2TR45EA2 4.5" .080 8mm / 10mm 7/8" - 5/8"
2TR05EA2 5" .080 8mm / 10mm 7/8" - 5/8"
2TR07FA3 7" .095 8mm / 10mm DM - 7/8" - 5/8"
2TR08FA3 8" .095 8mm / 10mm DM - 7/8" - 5/8"
2TR10FA3 10" .095 8mm / 10mm DM - 7/8" - 5/8"
2TR12HA6 12" .118 8mm / 10mm 1" - 20mm
2TR14HA6 14" .118 8mm / 10mm 1" - 20mm
